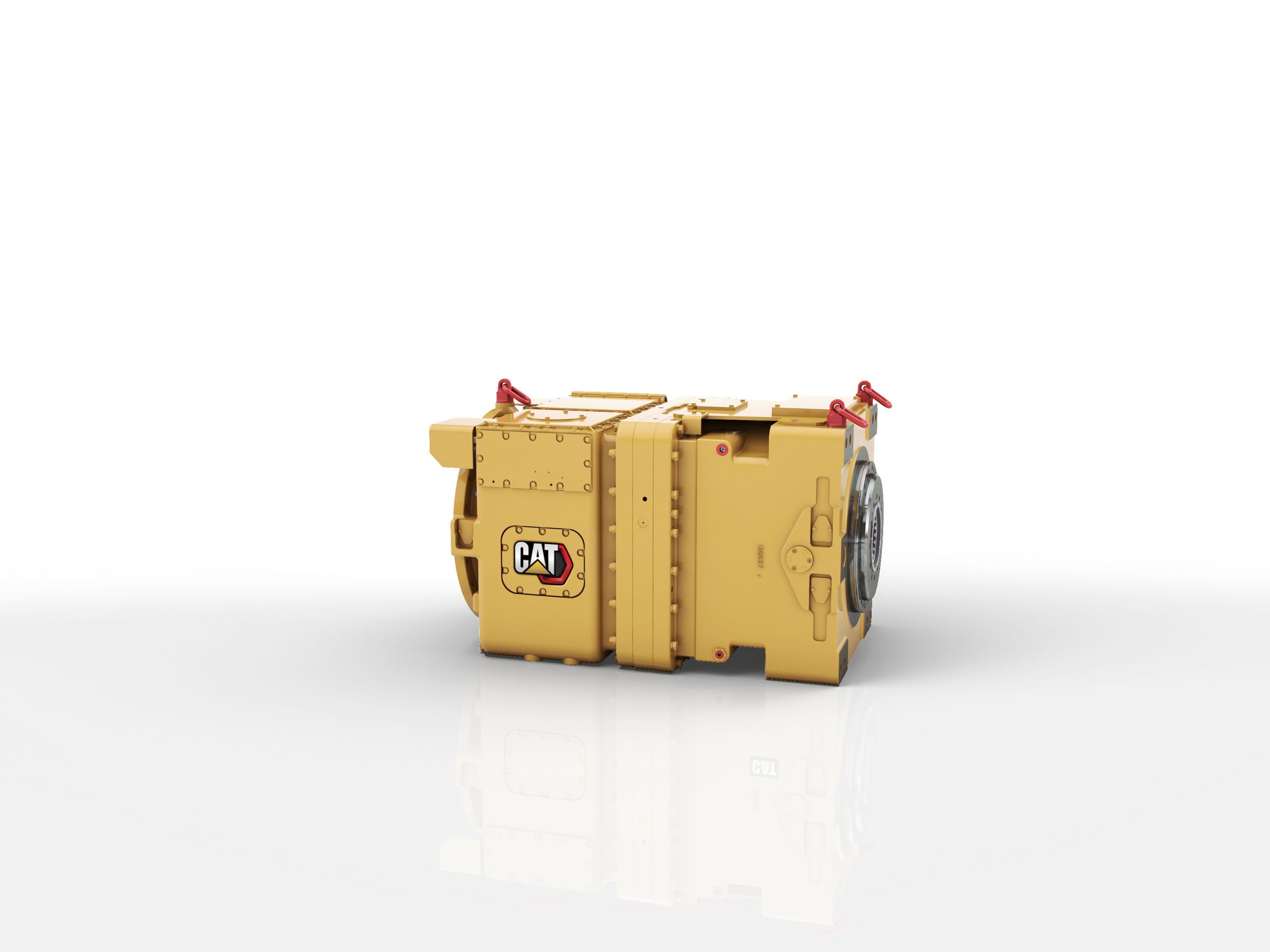

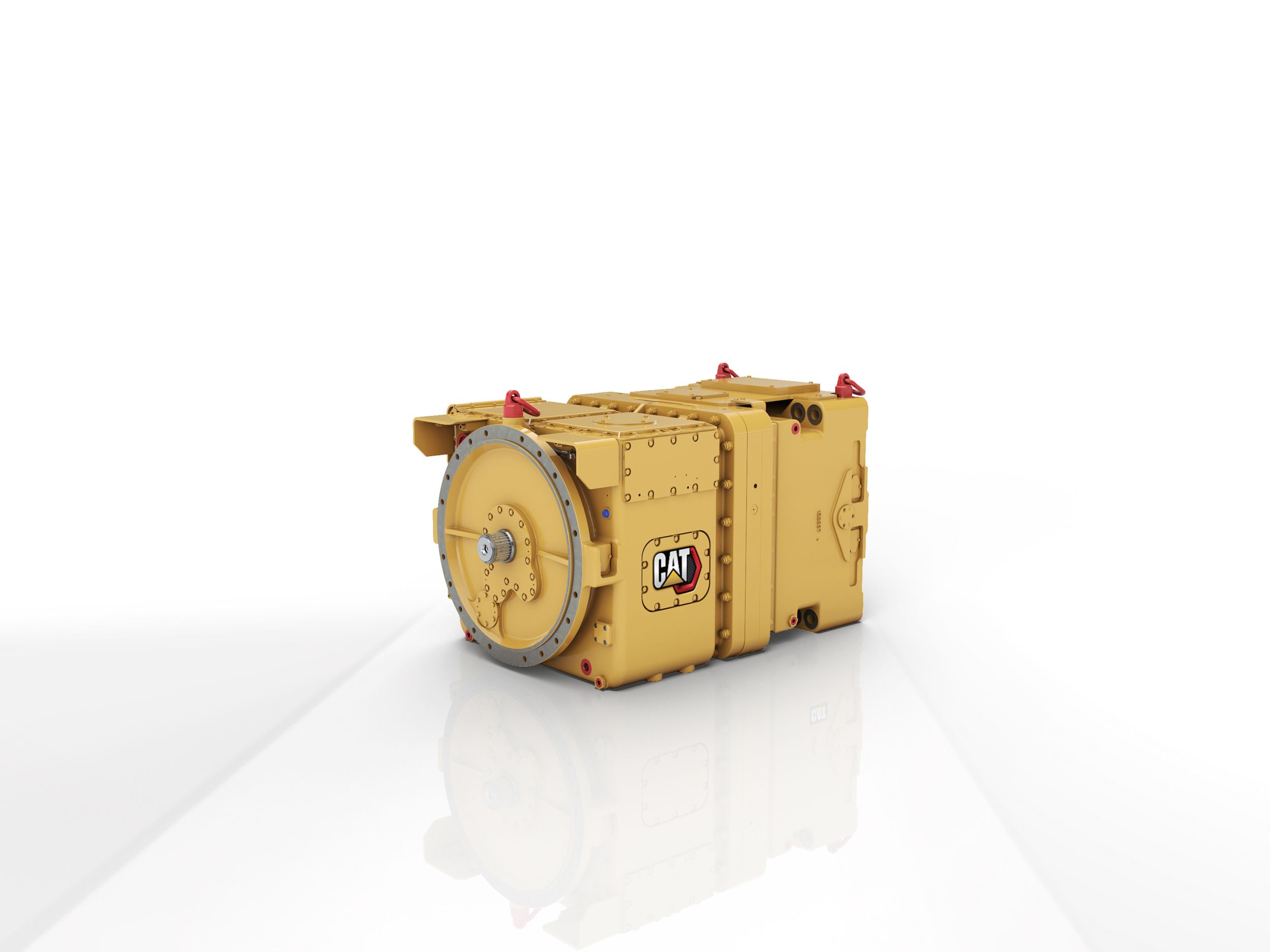

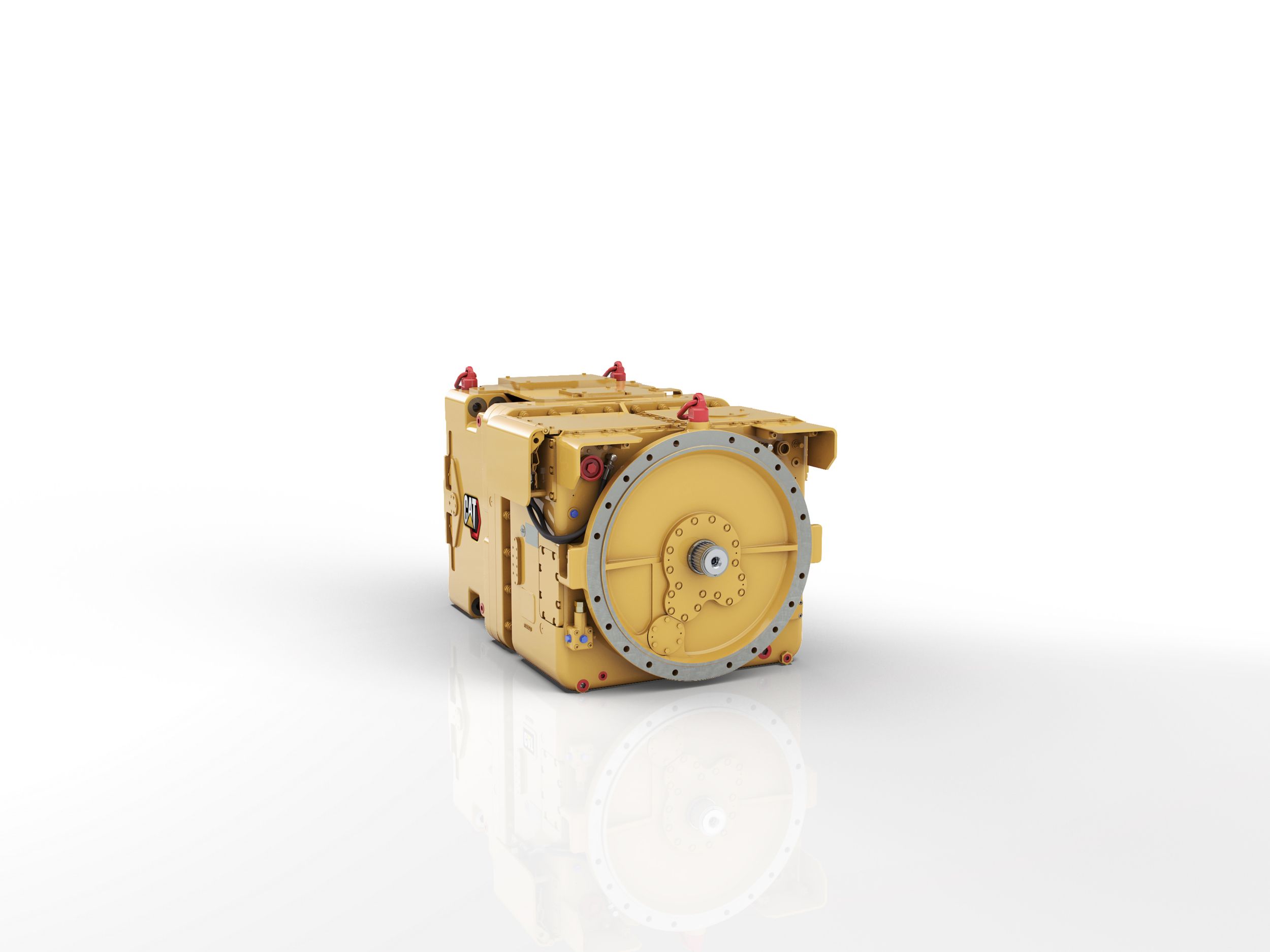

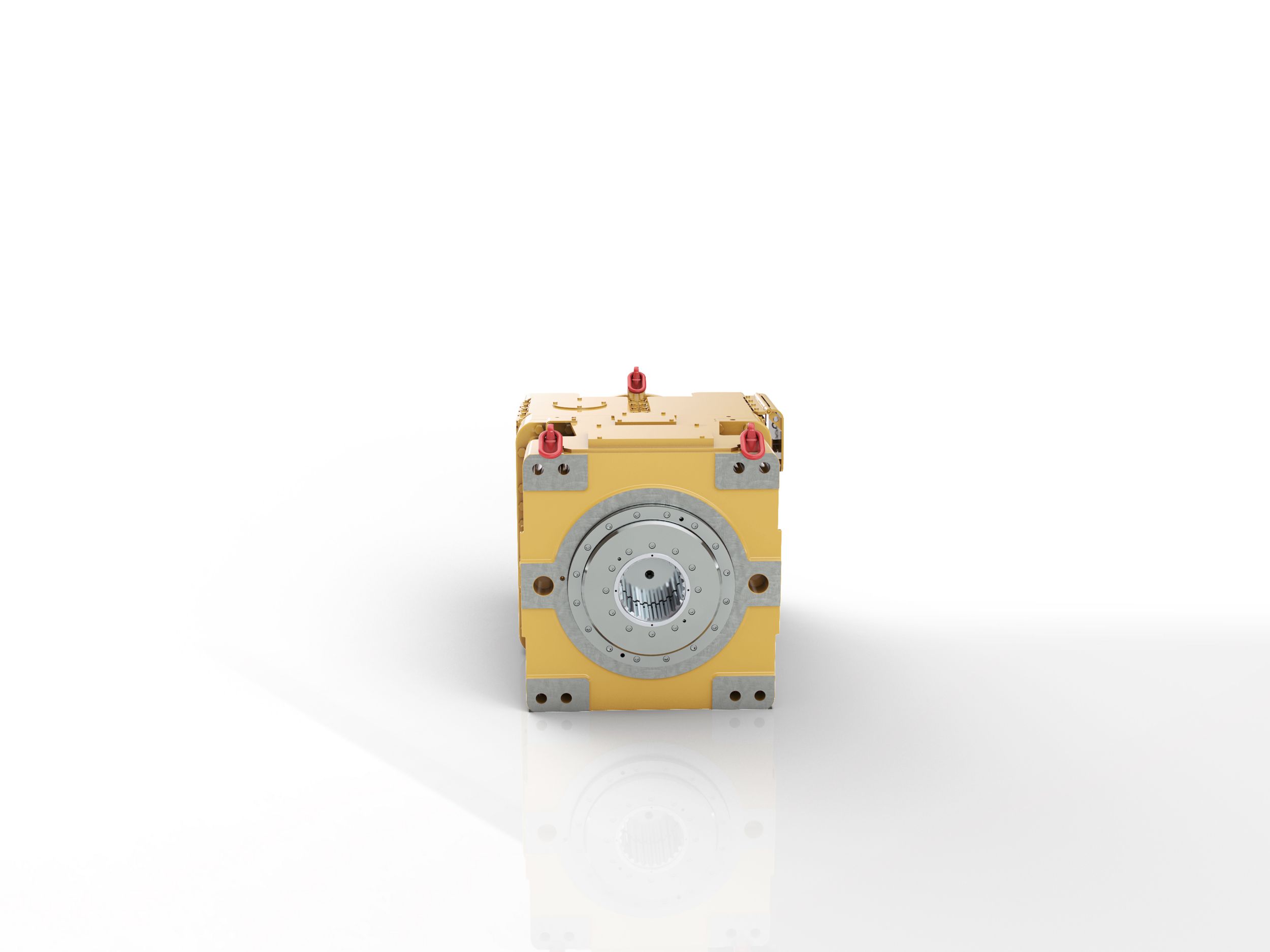

CST30 Gearbox
The drive for productivity leads to controlled start transmission systems.
Specifications
Product Brochures
Units:
Specifications
Maximum Input Speed - Motor Speed
1,500 rpm @ 50 Hz (1,800 rpm @ 60 Hz)
Weight - Without Oil - In-line Drive System
8600 lb
3900 kg
Maximum Output Torque for a Short Duration (3 sec.)
221269 ft-lb
300000 N·m
Typical Application
Description
Chain Type Longwall Machinery like Armored Face Conveyors (AFC)
Maximum Output Torque (for 3 sec) Tmax [N·m]
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 28
816 hp
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 50
400 kW
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 16
816 hp
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 21
816 hp
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 28
500 kW
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 39
435 kW
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 24.4
816 hp
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 33
816 hp
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 16
500 kW
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 50
653 hp
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 21
500 kW
KP-30/P-30 CST
221269 lb/ft
300000 N·m
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 33
500 kW
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 39
710 hp
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 24.4
500 kW
Dimensions
KP-30 CST - Length
89.8 in
2280 mm
P-30 CST - Width
37.8 in
960 mm
KP-30 CST - Width
46.5 in
1180 mm
KP-30 CST - Height
35.4 in
900 mm
P-30 CST - Height
35.4 in
900 mm
P-30 CST - Length
55.1 in
1400 mm
Requirements of Cooling Water
Maximum Water Inlet Temperature
25° C/298.15 K (77° F/298.15 K)
Required Cooling Water
5.28 gal/min
20 l/min
Capacity
KP-30 CST - Oil Quantity
132 gal (US)
500 l
P-30 CST - Gearbox Weight - Without Oil
8596 lb
3900 kg
P-30 CST - Oil Quantity
66 gal (US)
250 l
KP-30 CST - Gearbox Weight - Without Oil
12783 lb
5800 kg
Shaft Design
Input Shaft - Cylindrical
DIN 5480-W 100×4×30×24
Output Shaft with Internal Toothing
DIN 5480-N 220×10×30×20
