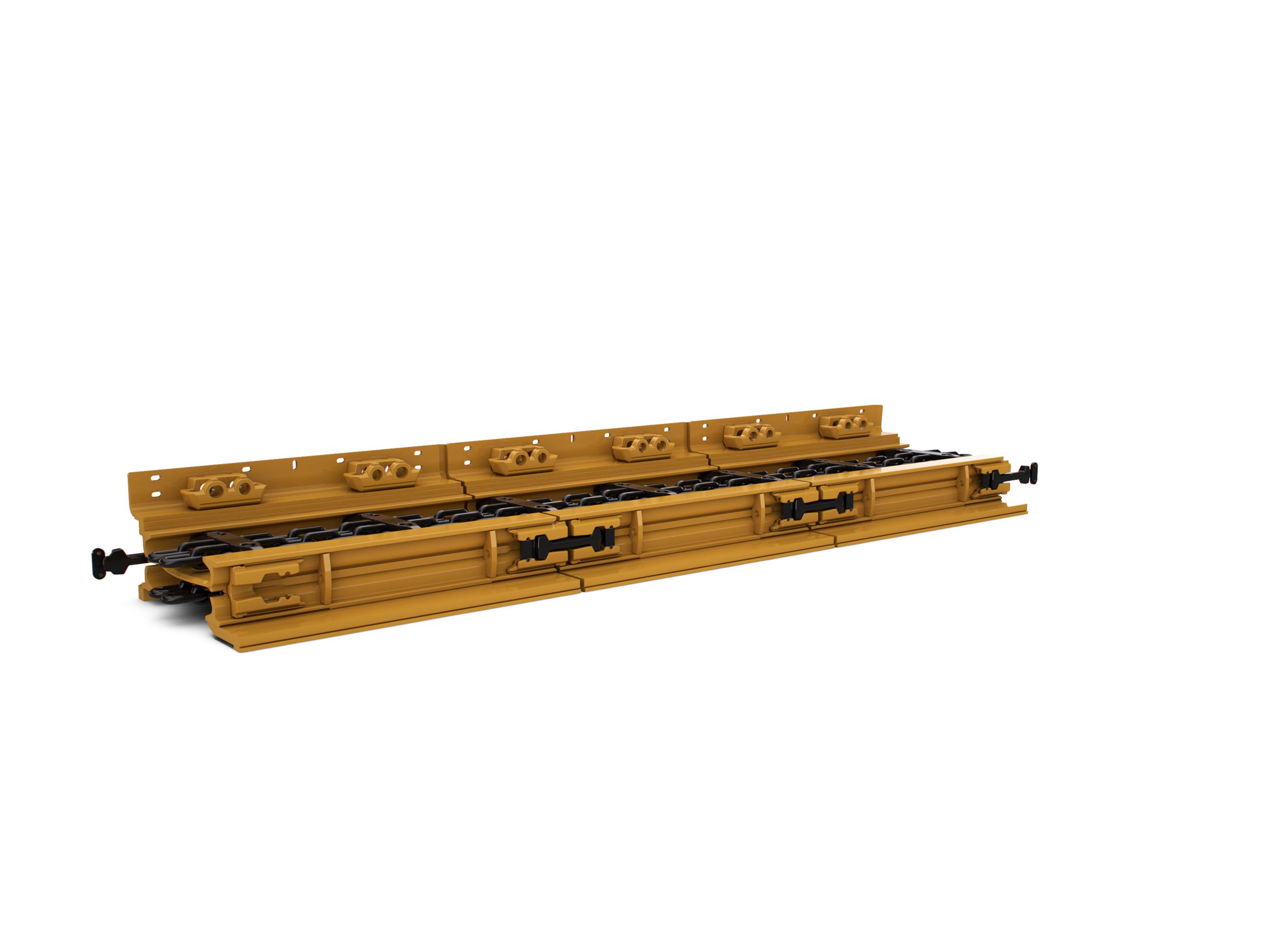

Face Conveyor - PF3
Cat® Face Conveyors are one of the most powerful transport systems in underground mining.
Specifications
Product Brochures
Units:
Typical Technical Data AFC Line Pan
Dogbone Breaking Force
449618 lb
2000 kN
Top Plate Thickness
30 mm (1.18 in)
Bottom Plate Thickness
0.78 in
20 mm
Technical Data
Bottom Plate Thickness
0.78 in
20 mm
Line Pan Width - PF3/922
36.3 in
922 mm
Vertical Articulation
up to ±6°
Flightbar Width - PF3/922
30.78 in
782 mm
Line Pan Width - PF3/822
32.36 in
822 mm
Deck Plate Thickness
1.18 in
30 mm
Conveying Capacity - PF3/922
3.87 ft²
0.36 m²
Conveying Capacity - PF3/822
2.8 ft²
0.26 m²
Conveying Capacity - PF3/722
1.93 ft²
0.18 m²
Flightbar Width - PF3/822
26.85 in
682 mm
Dogbone Breaking Strength
2000 kN (224.80 tonf)
Line Pan Width - PF3/722
28.42 in
722 mm
Dogbone Housing FoS
1.5 times
Profile Height
9.6 in
244 mm
Flightbar Width - PF3/722
22.91 in
582 mm
Chain Strands
DKB 26×92; DKB 30×108; DKB 34×126; DKB 38×137
Horizontal Articulation
0.8°-1.2°
Shear Strength
3000 kN (337.21 tonf)
