PMC-R 2.0 Roof Support Control

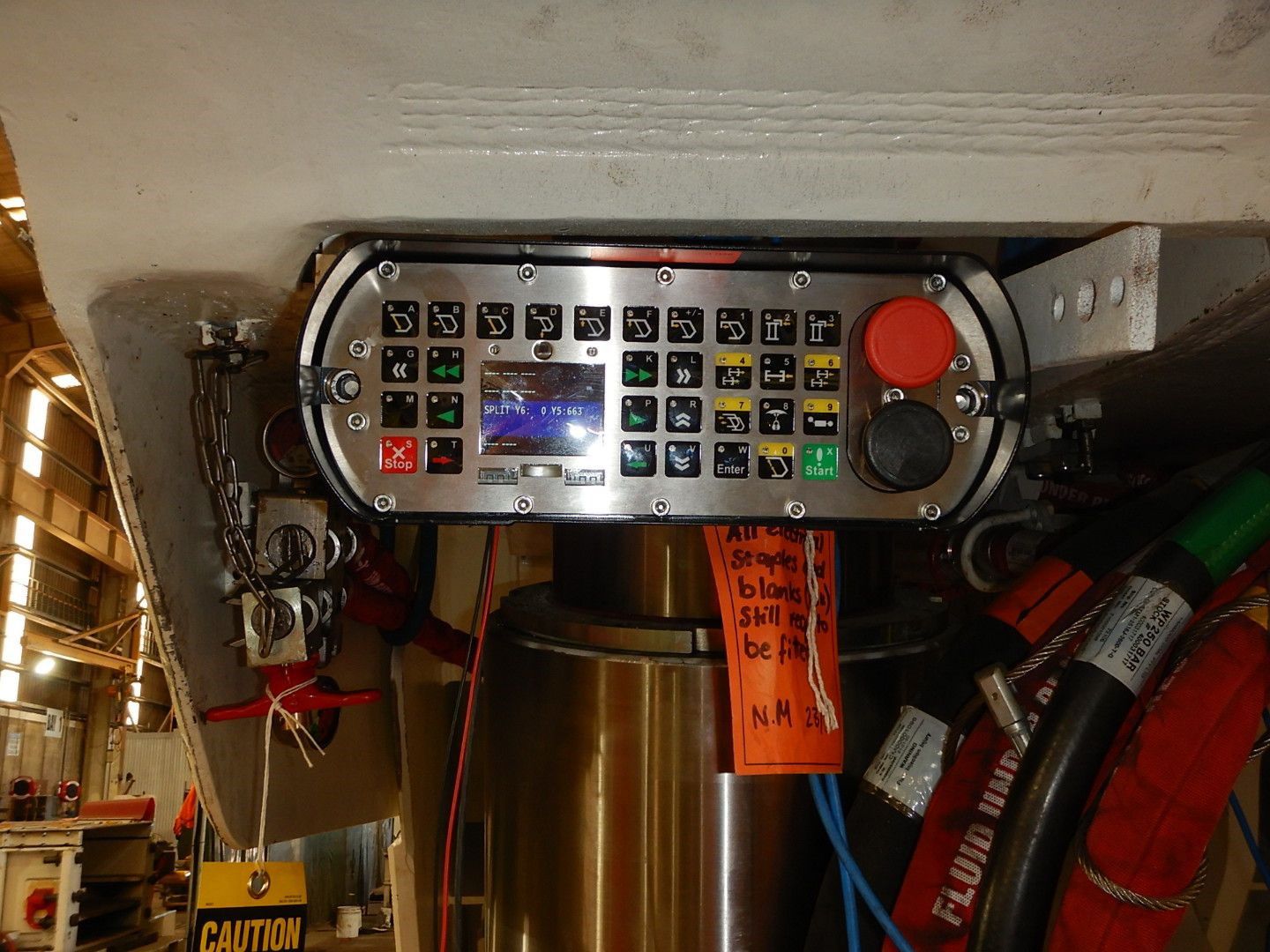

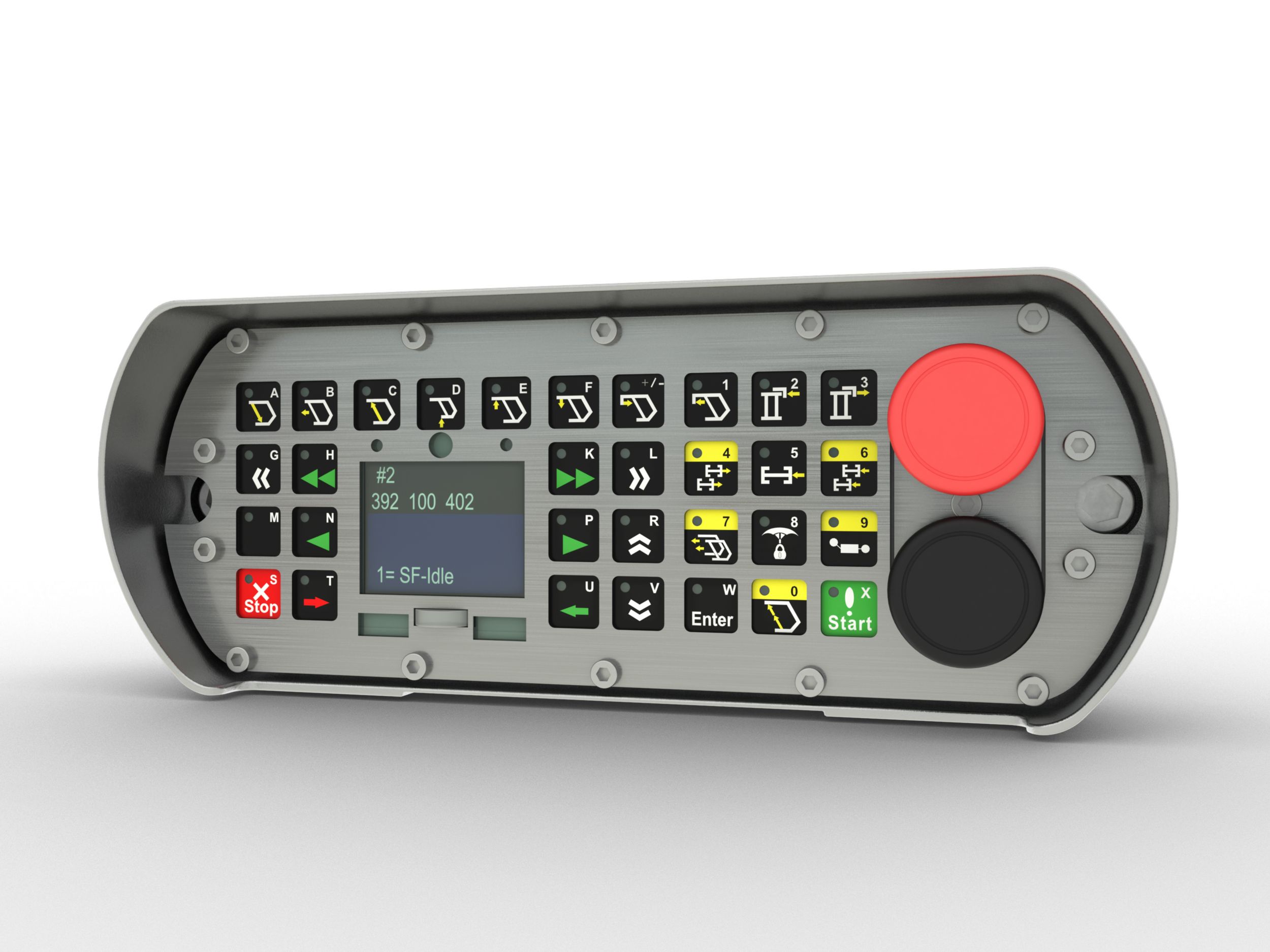

The intrinsically safe Cat® PMC-R 2.0 control units are specifically designed to be used on shearer or plow faces to provide high levels of longwall automation. Each roof support is equipped with one PMC-R 2.0 control unit and solenoid driver to operate the in-shield hydraulic functions and peripheral components, such as sensors for cylinder pressure and stroke length, shield inclination and personnel proximity detection. The PMC-R 2.0 unit controls and displays all functions of a roof support and serves as the interface between operator and machine (HMI).
Specifications
Product Brochures
Units:
CPU/Processor Data
CPU
Cat A6 family
Clock Frequency
Up to 260 MHz
Memory
8 MB internal FLASH ROM; 32 MB external FLASH ROM
Cores
3 core
Electrical Data
Supply Voltage - Typical Value
12V DC
Supply Voltage - Maximum Ratings
9V–13.2V
Power Consumption - Typical Value
170mA/@12V
Power Supply Current - Typical Value
Not applicable
Power Supply Current - Maximum Ratings
8.1 A (MSHA); 2.5 A (RoW)
Power Consumption - Maximum Ratings
230mA/@12V
Environmental Data
Operating Temperature - Typical Value
68 °F
20 °C
Storage Temperature - Typical Value
68 °F
20 °C
Operating Temperature - Symbol
Tamb
Operating Temperature - Maximum Ratings
–20° C–+40° C (–4° F–+104° F)
Storage Temperature - Maximum Ratings
–20° C–+60° C (–4° F–+140° F)
Storage Temperature - Symbol
T.
Connector
SKK 24 mini (Y1-Y6) - Maximum Ratings
8 A
SKK 24 mini (X1-X6) - Maximum Ratings
8 A
SKK 24 mini (Y1-Y6) - Amount
6
SKK 24 mini (X1-X6) - Amount
6
Optical Devices
Note
*Radio approval pending.
LED Indication 1 - Status HMI - Maximum Ratings
On/Off/Blinking – 1 × red, 2 × green
LCD Display - Shield Information - Amount
1
LED Indication 4 - Key Status - Maximum Ratings
On/Off/Blinking – green
Infra-Red LED - Shearer Position Detection - Amount
1
LED Indication 2 - Wireless Status* - Amount
2
LED Indication 2 - Wireless Status* - Maximum Ratings
On/Off/Blinking – 1 × green, 1 × yellow
LED Indication 4 - Key Status - Amount
31
LCD Display - Shield Information - Maximum Ratings
66 mm (2.6 in) – 320 × 240 pixel – color 64 K in use
LED Indication 1 - Status HMI - Amount
3
LED Indication 3 - Big Jumbo LED - Maximum Ratings
On/Off/Blinking – 1 × red, 1 × green, 1 × yellow
LED Indication 3 - Big Jumbo LED - Amount
3
Infra-Red LED - Shearer Position Detection - Maximum Ratings
IRDA Standard receiver
Acoustic Devices
Beeper - Maximum Ratings
>= 90 dB
Beeper - Amount
1
Dimensions (Approximate)
Length
12.36 in
314 mm
Height
4.8 in
122 mm
Width
4.88 in
124 mm
Note
SKK Connector fits to existing Cat brass bar.
Weights
Approximate Weight
12.3 lb
5.5 kg
