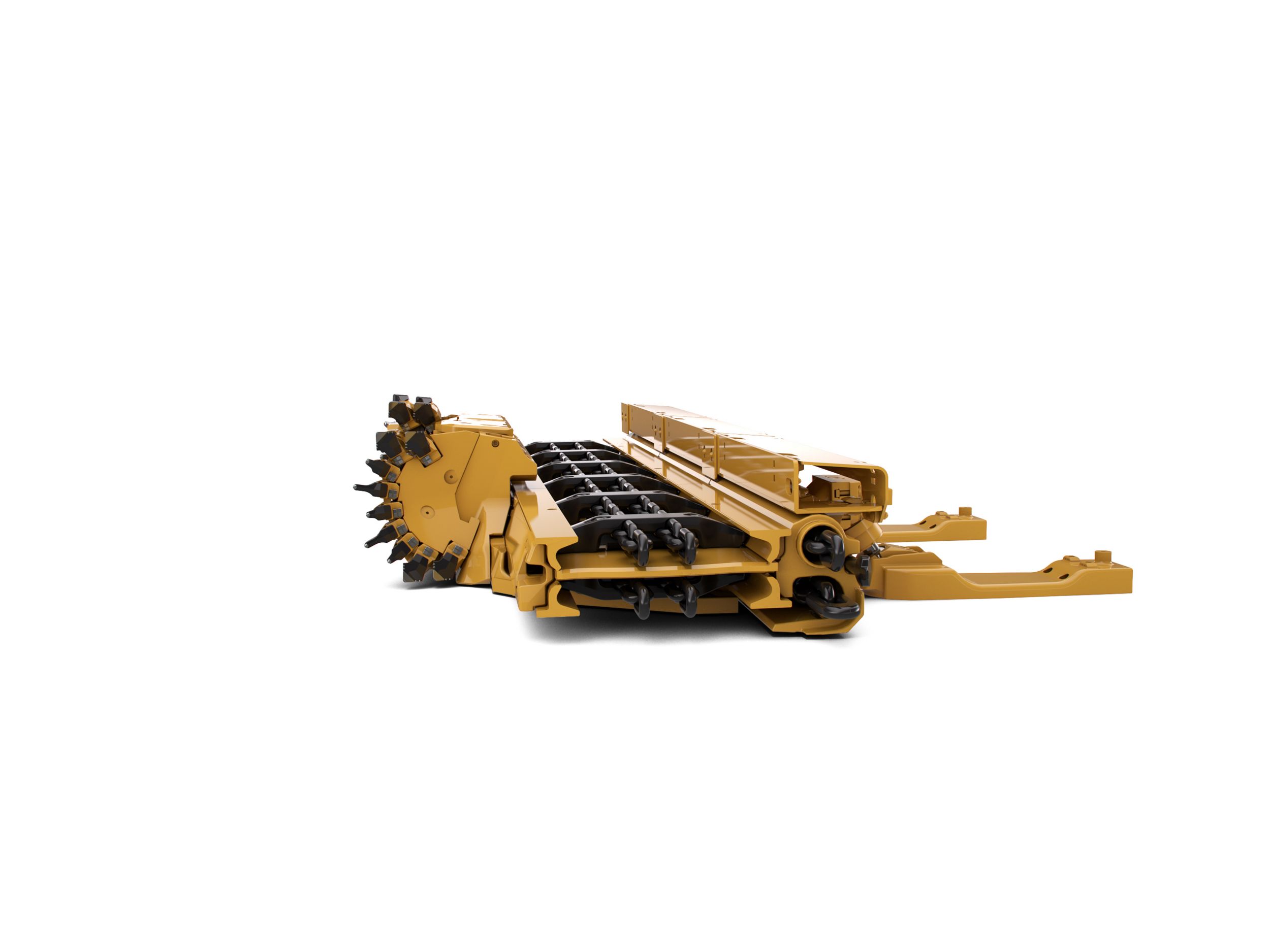

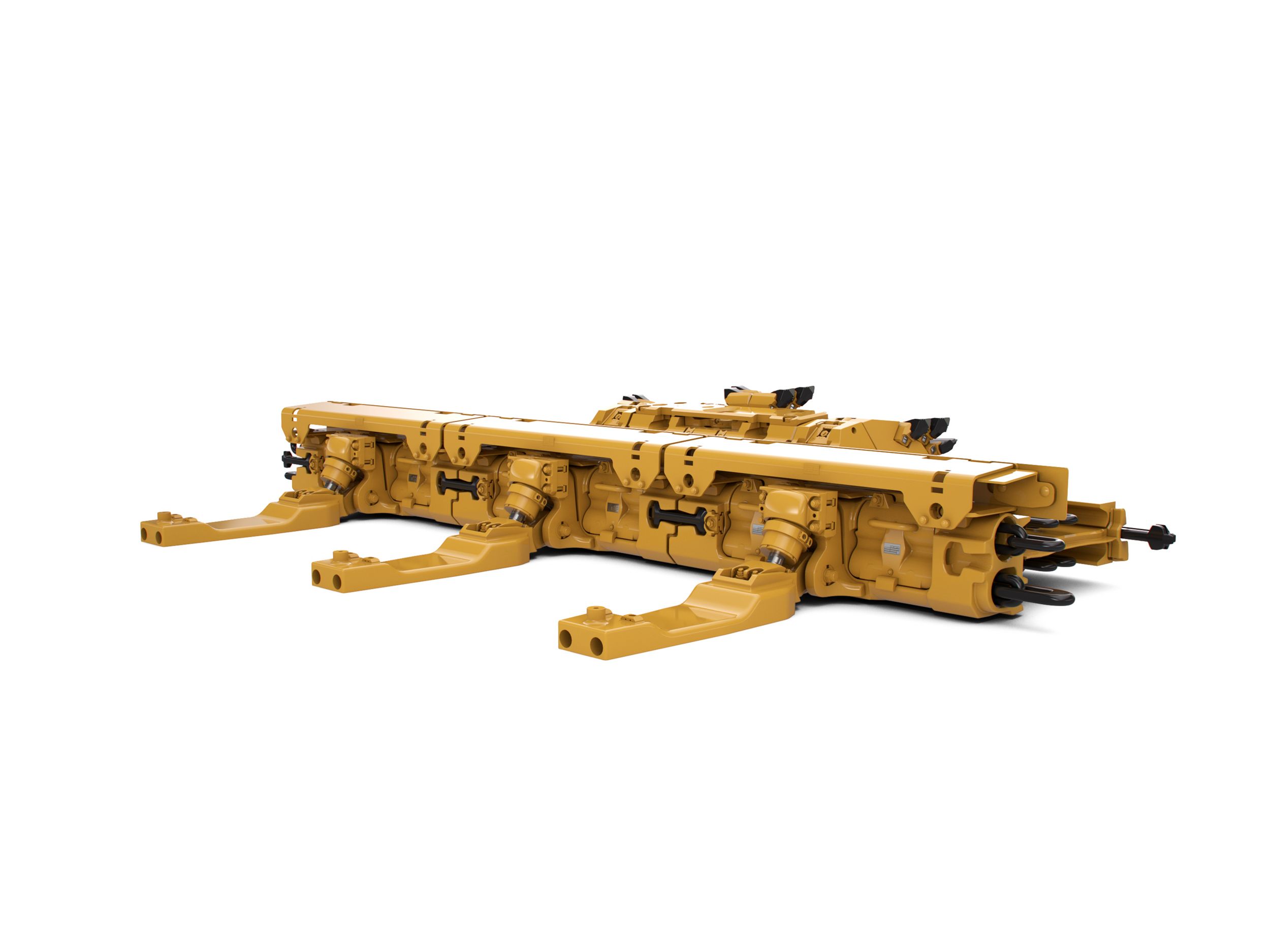

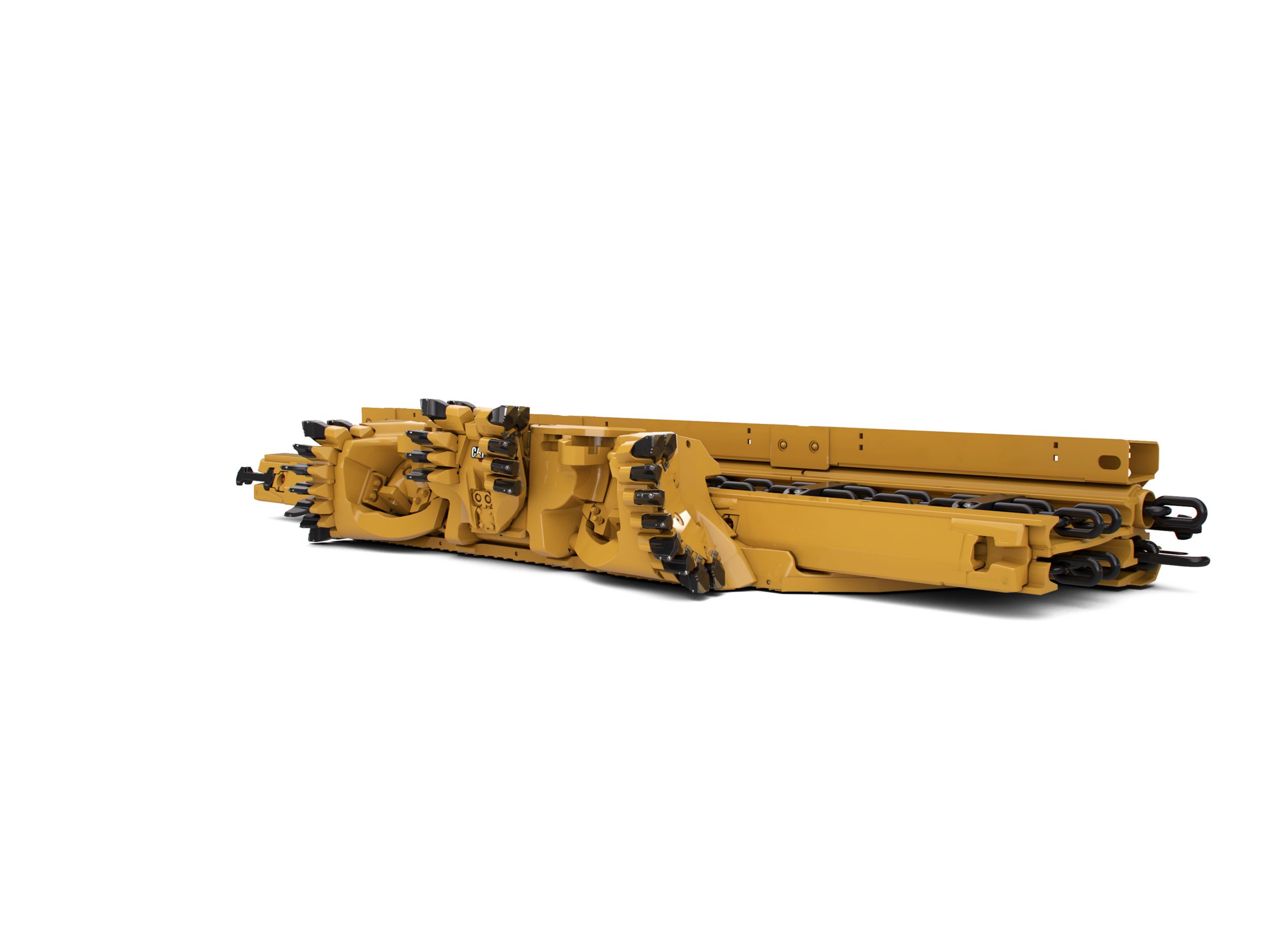

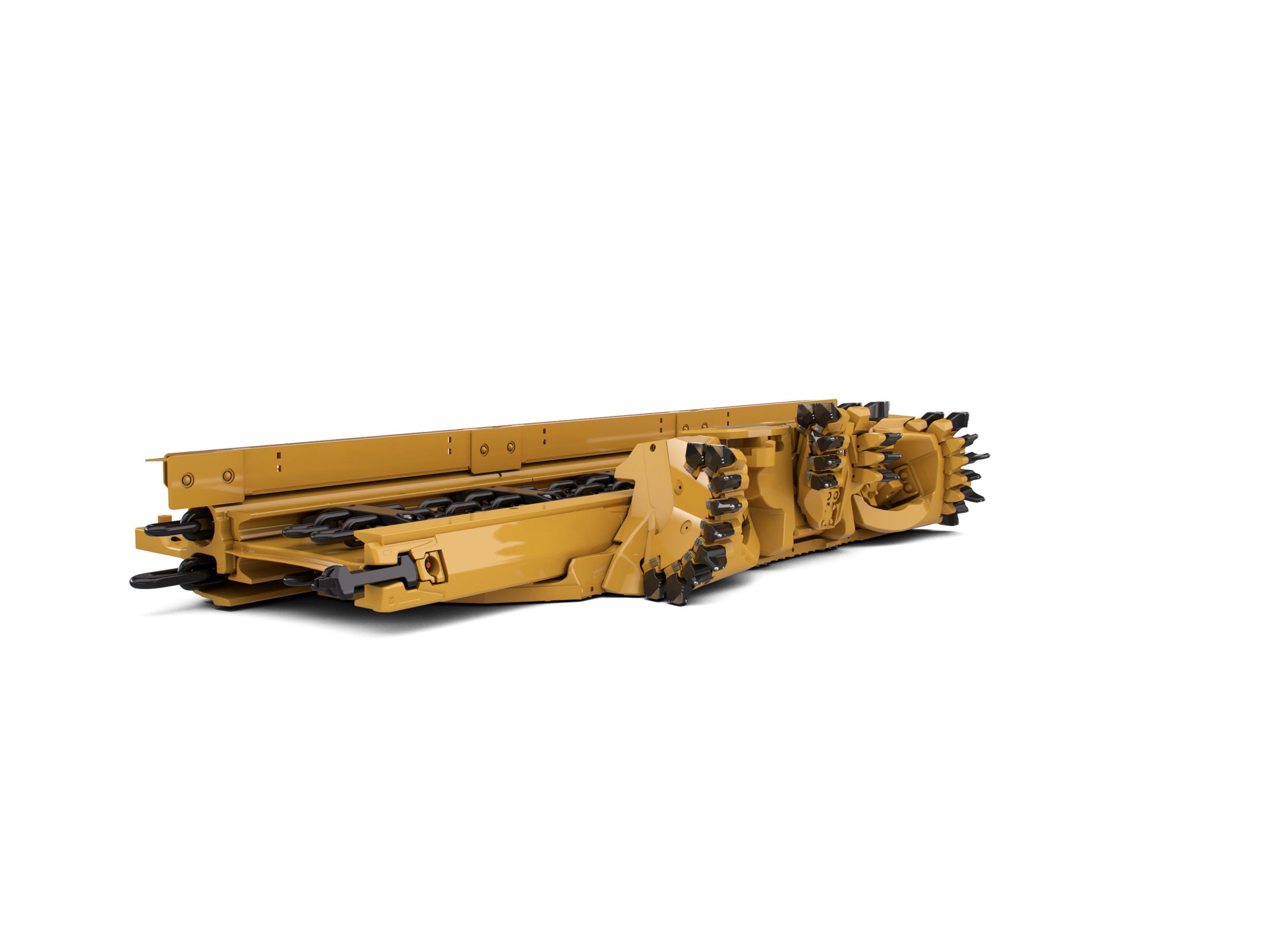

RHH800 - Plow System
Automation turns a simple, robust plow into a high-performance mining machine.
Specifications
Product Brochures
Units:
Specifications
Coal Hardness
Soft - hard coal
Maximum Installed Power
2 × 400 kW (2 × 536 hp)
Plow Body Height
0.6 m-1.6 m (24-63 in)
Typical Cutting Height
0.8 m-1.6 m (31.5-63 in)
Maximum Plow Speed
2.5 m/s (500 fpm)
Maximum Cutting Depth
7.48 in
190 mm
Maximum Seam Inclination
up to 60°
Technical Data
Bottom Bit Positions - Position 1
+24 mm (+0.08 ft)
Plow Heights - Height 1
600-855 mm (1.97-2.81 ft)
Maximum Drive Power
2 × 400 kW (2 × 536 hp)
Plow Heights - Height 2
820-1120 mm (2.70-3.67 ft)
Bottom Bit Positions - Position 2
-5 mm (-0.02 ft)
Plow Heights - Height 4
1350-1650 mm (4.43-5.41 ft)
Bottom Bit Positions - Position 3
-18 mm (-0.06 ft)
Plow Length
7.82 ft
2384 mm
Maximum Cutting Depth
0.62 ft
190 mm
Mechanical Height Adjustment
255-300 mm (0.83-0.98 ft)
Plow Heights - Height 3
1085-1385 mm (3.56-4.54 ft)
Bottom Bit Positions - Position 4
-37 mm (-0.12 ft)
Weight
4400-6400 kg (9,700-14,109 lb)
